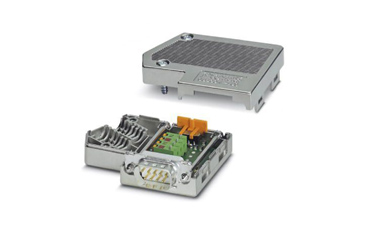

SUBCON-PLUS-PROFIB 菲尼克斯D-SUB总线连接器
phoenix菲尼克斯D-SUB总线连接器SUBCON-PLUS-PROFIB，Fuxb automation will serve you wholeheartedly！ +86-021-51601058
Praise：
菲尼克斯D-SUB总线连接器SUBCON-PLUS-PROFIB现货
产品特性
▷ D-SUB连接器
▷ 9位，针式连接器
▷ 轴向型号带有两个电缆入口
▷ 角度小于35°
▷ 总线系统：PROFIBUS DP（上限至12 Mbps）
▷ 终端电阻可通过滑动开关接通
▷ 引脚分配：3、5、6、8；回拉式弹簧连接端子
菲尼克斯D-SUB总线连接器SUBCON-PLUS-PROFIB介绍
适用于所有常规Fast Connect PROFIBUS电缆和RS-485总线线路
通过可翻转的连接块改为D-SUB朝向
尺寸
| 上限电缆直径 | 8.4 mm |
|---|---|
| 较小电缆直径 | 7.6 mm |
| 宽度 | 16 mm |
| 高度 | 49.5 mm |
| 长度 | 60 mm |
环境条件
| 环境温度（运行） | -20 °C ... 75 °C |
|---|---|
| 环境温度（存放/运输） | -25 °C ... 80 °C |
| 海拔 | ≤ 5000 m (有关限制，请见制造商关于高海拔运行的声明) |
常规
| 额定电压 UN | 5 V |
|---|---|
| 额定电流IN | 100 mA |
| 总线系统 | PROFIBUS DP |
| 信号 | PROFIBUS |
| 插／拔周期 | > 200 |
| SUBCON紧固螺钉 | 4-40 UNC |
| 紧固力矩 | 0.4 Nm |
| 外壳材料 | ABS，金属镀层 |
| 引脚分布 | 3, 5, 6, 8 |
| MTTF | 6706 年数 (SN 29500标准，温度25°C，占空比21%) |
| 1817 年数 (SN 29500标准，温度40°C，占空比34.25%) | |
| 155 年数 (SN 29500标准，温度40°C，占空比100%) |
连接数据
| 连接 | D-SUB连接 |
|---|---|
| 位数 | 9 |
| 连接方式 | D-SUB连接器 |
| 终端电阻 | 390 Ω |
| 220 Ω | |
| 390 Ω (可从外部连接) | |
| 连接 | PCB连接 |
| 连接方式 | 回拉式弹簧连接 |
| 刚性导线较小横截面 | 0.12 mm² |
| 刚性导线较大横截面 | 0.5 mm² |
| 较小导线横截面AWG | 26 |
| 上限导线横截面AWG | 20 |
| 剥线长度 | 5 mm |
| 紧固力矩 | 0.4 Nm |
标准和规范
| 无影响涂层的物质 | 符合P-VW 3.10.7 57 65 0 VW-AUDI-Seat 中央标准 |
|---|---|
| 连接符合标准 | CUL |
