NJ50-FP-E2-P1停产替代NCB50-FP-E2-P1 现货供应

NJ50-FP-E2-P1停产替代NCB50-FP-E2-P1 现货供应

       电感式传感器NJ50-FP-E2-P1，工作距离 50 mm，非齐平安装，Fuxb automation will serve you wholeheartedly！ +86-021-51601058

Praise：

inquiry NJ50-FP-E2-P1停产替代NCB50-FP-E2-P1 现货供应

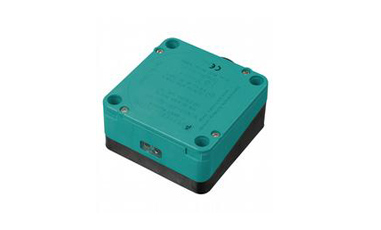

倍加福电感式传感器NJ50-FP-E2-P1现货供应
NJ50-FP-E2-P1
产品特性

       ▷ 工作距离 50 mm
       ▷ 非齐平安装


General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 50 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 ... 40.5 mm
Reduction factor rAl 0.4
Reduction factor rCu 0.3
Reduction factor r304 0.85
Nominal ratings
Operating voltage 10 ... 60 V
Switching frequency 0 ... 100 Hz
Hysteresis typ. 3 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 3 V
Operating current 0 ... 200 mA
Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load supply current ≤ 20 mA
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Standard conformity
Standards IEC / EN 60947-5-2:2004
Approvals and certificates
CCC approval Certified by China Compulsory Certification (CCC)
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Core cross-section up to 2.5 mm2
Housing material PBT
Sensing face PBT
Degree of protection IP67
