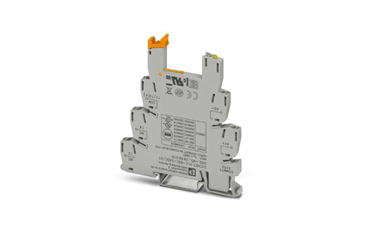

PLC-BSC-24DC/21 菲尼克斯继电器底座现货
phoenix菲尼克斯继电器底座PLC-BSC-24DC/21，Fuxb automation will serve you wholeheartedly！ +86-021-51601058
Praise：
菲尼克斯继电器底座PLC-BSC-24DC/21现货
产品特性
▷ 6.2 mm PLC底座端子
▷ 采用螺钉连接方式
▷ 不带继电器或固态继电器
▷ 可安装在DIN导轨NS 35/7.5上
▷ 1个PDT
▷ 输入电压24 V DC
尺寸
| 宽度 | 6.2 mm |
|---|---|
| 高度 | 80 mm |
| 深度 | 94 mm |
环境条件
| 环境温度（运行） | -40 °C ... 60 °C |
|---|---|
| 环境温度（存放/运输） | -40 °C ... 85 °C |
输入数据
| 额定输入电压 UN | 24 V DC |
|---|---|
| 状态显示 | LED |
| 保护电路 | 阻尼二级管，级性保护二级管 |
| 阻尼二级管 |
概述
| 保护电路 | 阻尼二级管，级性保护二级管 |
|---|---|
| 操作模式 | 100%工作因数 |
| 颜色 | 灰色 |
| 阻燃等级，符合UL 94 | V0 (外壳) |
| 安装位置 | 任意 |
| 组装说明 | 无间距排列 |
连接数据
| 连接名称 | 输入侧 |
|---|---|
| 连接方式 | 螺钉连接 |
| 剥线长度 | 8 mm |
| 螺纹 | M3 |
| 硬导线横截面 | 0.14 mm² ... 2.5 mm² |
| 柔性导线横截面 | 0.14 mm² ... 2.5 mm² |
| 0.2 mm² ... 2.5 mm² (单套管) | |
| 2x 0.5 mm² ... 1.5 mm² (TWIN套管) | |
| 可连接导向横截面 AWG | 26 ... 14 |
连接数据2
| 连接名称 | 输出侧 |
|---|---|
| 连接方式 | 螺钉连接 |
| 剥线长度 | 8 mm |
| 螺纹 | M3 |
| 硬导线横截面 | 0.14 mm² ... 2.5 mm² |
| 柔性导线横截面 | 0.14 mm² ... 2.5 mm² |
| 0.2 mm² ... 2.5 mm² (单套管) | |
| 2x 0.5 mm² ... 1.5 mm² (TWIN套管) | |
| 可连接导向横截面 AWG | 26 ... 14 |
标准和规范
| 连接符合标准 | CUL |
|---|
